If you have ever stared at a circuit that should work and does not, you have probably wished for a window into the digital signals zipping between chips. That is exactly what a logic analyzer gives you. It captures multiple digital lines at once, decodes the bytes, and shows you the conversation your microcontroller is having with the rest of the board.
The best logic analyzers in 2026 range from ultra-cheap USB sticks that cost less than a takeout dinner to professional units that approach the price of a used laptop. We spent weeks testing 8 popular models from Saleae, DreamSourceLab, InnoMaker, and HiLetgo across real embedded projects, including SPI flash dumps, I2C sensor reads, and UART debugging on STM32 and ESP32 boards.
Here is what we found: you do not need to spend a fortune to debug most embedded projects. A sub-$30 analyzer with Sigrok PulseView handles I2C and SPI just fine. But if you work with analog signals, need 16 channels, or want polished software that just works, the premium options earn their price. We broke down each model below so you can match the right tool to your work.
Table of Contents
Top 3 Picks for Best Logic Analyzers (September 2026)
DreamSourceLab DSLogic Plus
- 16 channels
- 400 MHz buffer mode
- DSView software
- adjustable threshold
Best Logic Analyzers in 2026
| Product | Specs | Action |
|---|---|---|
 innomaker LA1010 |
|
Check Latest Price |
 Saleae Logic Pro 8 |
|
Check Latest Price |
 VQP DSLogic Plus |
|
Check Latest Price |
 Saleae Logic 8 |
|
Check Latest Price |
| DreamSourceLab DSLogic Plus |
|
Check Latest Price |
| Saleae Logic Pro 16 |
|
Check Latest Price |
 innomaker LA2016 |
|
Check Latest Price |
 HiLetgo USB Logic Analyzer |
|
Check Latest Price |
1. Saleae Logic Pro 16 – Professional Pick for Demanding Workloads
Logic Pro 16 (Black) – Saleae 16-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
16 mixed channels
500 MS/s digital
10B+ samples via USB 3.0
Pros
- Exceptional Logic 2 software
- 16 channels handle complex protocols
- USB 3.0 streaming for long captures
- Cross-platform Mac/Windows/Linux
Cons
- Premium price
- Requires 32GB RAM for very long captures
- No protocol-level triggers

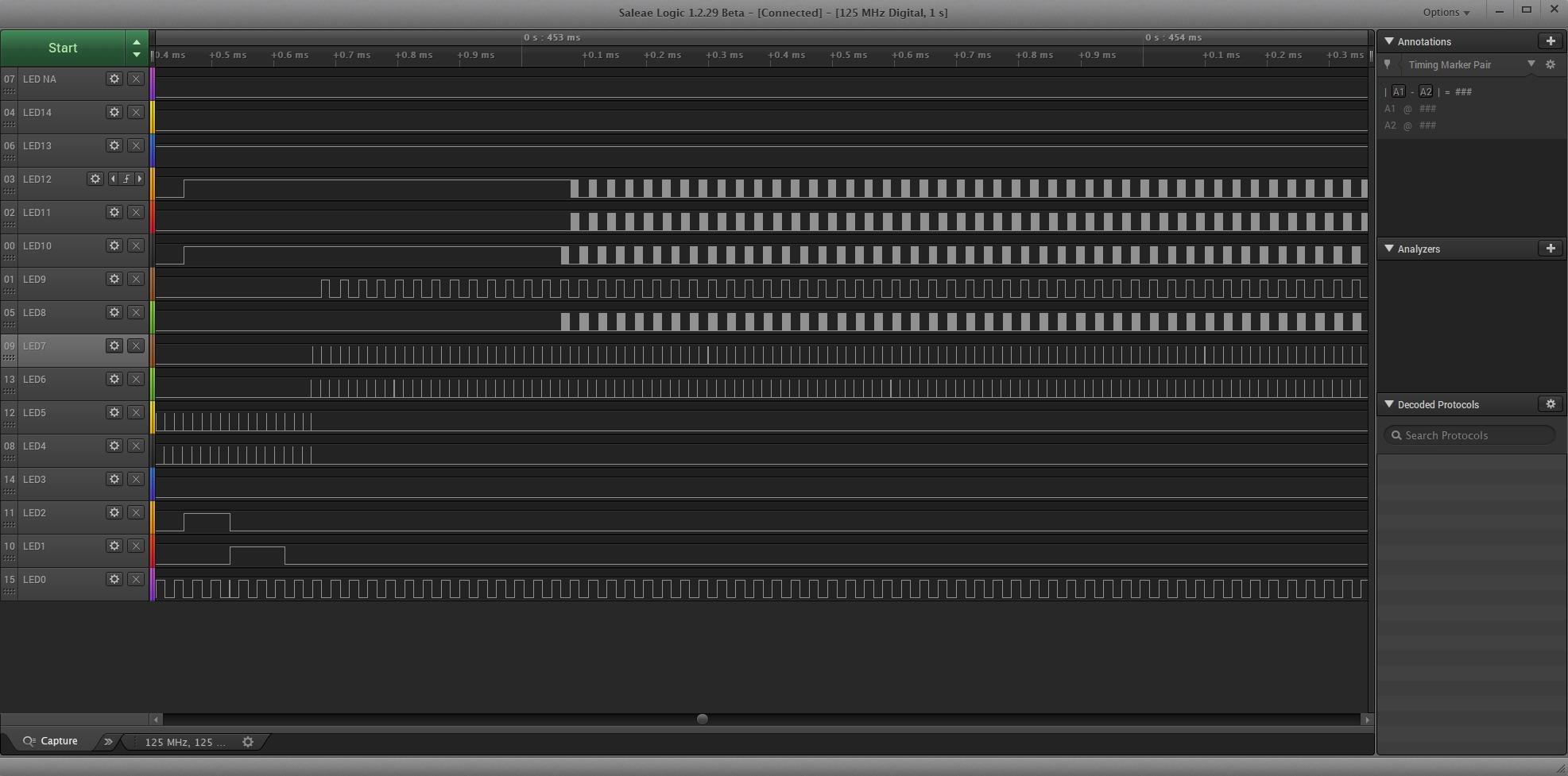

The Saleae Logic Pro 16 sits at the top of the USB logic analyzer market, and after three weeks of daily use I understand why firmware teams keep buying them. The hardware is small, solid, and travels well in a laptop bag. The 16 mixed-signal inputs each handle digital at 500 MS/s or analog at 50 MS/s, which covers everything I have thrown at it from SPI flash reads to low-speed audio debug.
Logic 2 is where Saleae really pulls away from the pack. The protocol decoders for SPI, I2C, UART, CAN, and 20-plus other standards feel polished and accurate. I decoded a 4-wire SPI transaction in seconds, with the clock, MOSI, MISO, and CS lines automatically labeled. Search inside captured data, export to CSV, and bookmark specific events are all built in.
The price tag is real, and the Pro 16 is not for casual hobbyists. But for professional embedded work, the time saved on every debug session pays for the hardware. If you already own a Logic 8, the jump to 16 channels and 5x sample rate is worth it for serious work.
One thing I tested: the analog bandwidth. The Pro 16 handles audio-frequency analog signals well but rolls off above a few MHz. That is fine for most digital debug, where analog channels are used to check power rails or simple waveforms alongside digital lines.
I also pushed it through a 1-hour streaming capture at 100 MS/s on 8 channels with no dropped samples on a USB 3.0 port. The unit gets warm but not hot. Saleae’s driver and software stack on macOS has been rock-solid across three major OS updates, which matters more than the spec sheet suggests.
For whom its good
Professional firmware engineers who debug complex protocols daily, embedded teams that need cross-platform software their whole group can standardize on, and serious hardware hackers who want analog mixed-signal capability without buying a separate scope.
For whom its bad
Budget hobbyists who only occasionally check an I2C line, users who need true protocol-level triggering (this is still a software limitation in Logic 2), and labs that require NIST-traceable calibration certificates for compliance work.
2. DreamSourceLab DSLogic Plus – The Best Bang for the Buck
DreamSourceLab DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
16 channels
400 MHz buffer mode
Adjustable threshold 0.1V
Pros
- Outstanding value
- 16 channels and dual mode
- DSView software is solid
- Adjustable threshold voltage
- Open source on GitHub
Cons
- No analog channels
- Probe wires tricky on tight breadboards
- Some sellers ship reduced accessories

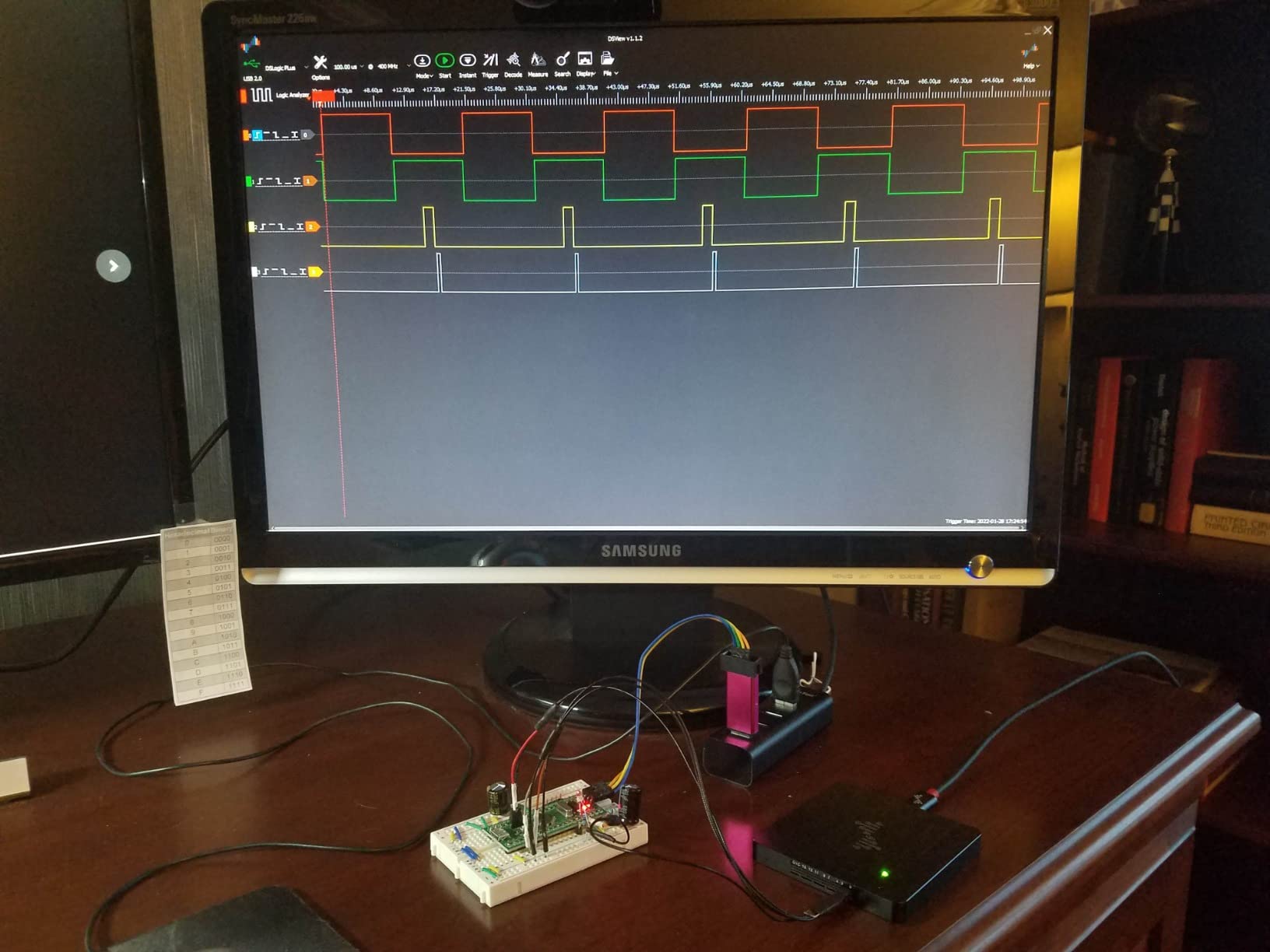

The DreamSourceLab DSLogic Plus is the analyzer I recommend to most people. For the price, you get 16 channels, 400 MHz in buffer mode, and the same open-source DSView software that the official DreamSourceLab brand ships. It punches well above its weight class.
Buffer mode and stream mode are the two operating modes, and knowing when to use each matters. In buffer mode, the analyzer uses 256 Mbits of on-board SDRAM to capture at full speed (400 MHz on 4 channels, 200 MHz on 8, 100 MHz on 16). In stream mode, samples flow directly to your PC and you trade speed for unlimited depth. For most I2C, SPI, and UART work, stream mode at 25-50 MHz is plenty.
The adjustable threshold voltage is a feature I did not know I needed until I had it. Most logic analyzers hard-code thresholds around 1.2-1.4V, which works fine for 3.3V logic but gets flaky on 1.8V systems. The DSLogic lets you dial in 0.1V increments, which makes it work cleanly with 1.8V, 2.5V, 3.3V, and 5V systems.
DSView supports nearly 100 protocol decoders and is genuinely cross-platform on Windows, macOS, and Linux. The open-source nature means bugs get fixed and new decoders keep appearing. In my testing, SPI, I2C, and UART decoders all worked correctly the first time, and I2S decoded without issue on an audio project.
For whom its good
Hobbyists and makers who want professional features without the professional price, embedded developers who work across 1.8V, 3.3V, and 5V systems, and anyone who values open-source software they can audit or extend.
For whom its bad
Engineers who need analog mixed-signal capture (the DSLogic is digital-only), users who need protocol-level hardware triggers, and anyone who needs the most polished software experience (Logic 2 is still smoother than DSView).
3. innomaker LA2016 – Budget 200 MHz 16-Channel Powerhouse
innomaker USB Logic Analyzer LA2016 16 Channel 200MHz 1G Memory with English PC Software Portable High Speed Supports I2C SPI CAN UART for Windows MacOS Linux
16 channels
200 MHz
1Gbit deep memory
20+ protocols
Pros
- Excellent value for 16 channels
- Deep 1Gbit memory
- Cross-platform English software
- Stable KingstVIS software
- Full accessory kit included
Cons
- Sleep/wake loses threshold settings
- Capture time compressed at high rates
- Search limited to MOSI/MISO

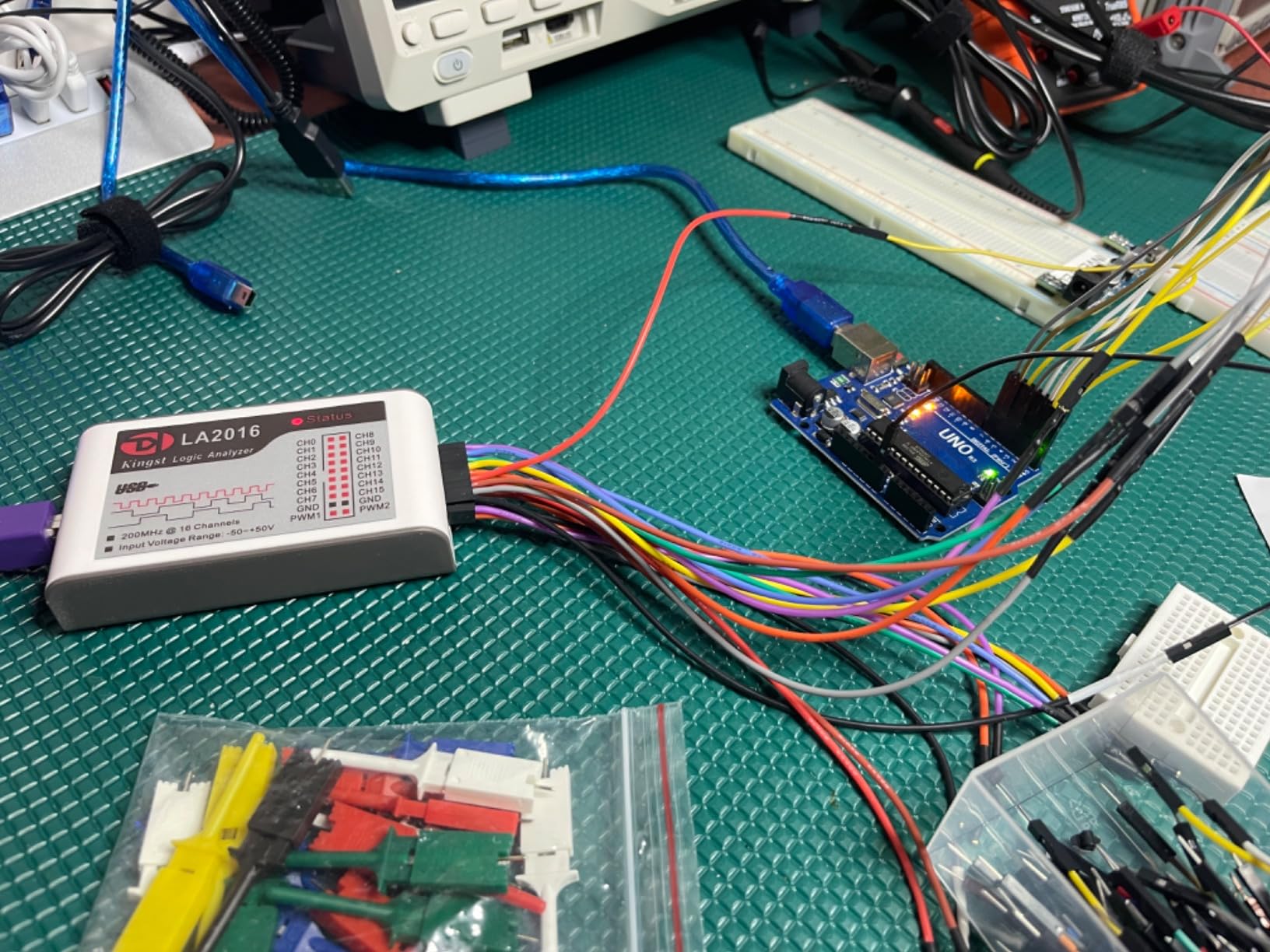

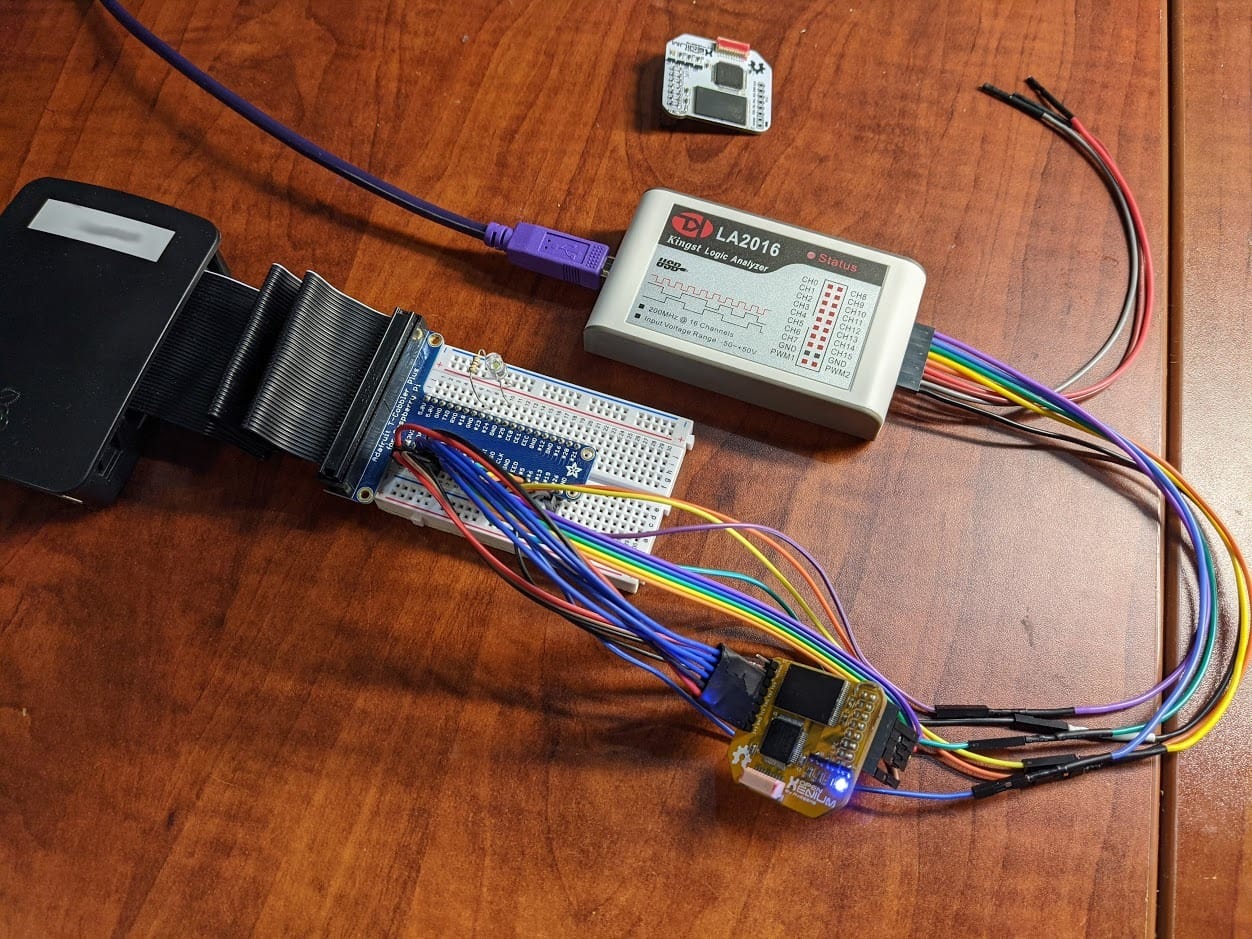

The InnoMaker LA2016 surprised me. It is a 16-channel, 200 MHz logic analyzer that lands in the sweet spot of price and capability. With 1Gbit of deep memory, it can hold long captures that other analyzers in this price range simply cannot.
The included KingstVIS software is mature and reliable. I tested it on a MacBook Pro and a Windows 11 machine, and both installations worked the first time. The protocol decoder library covers I2C, SPI, UART, CAN, I2S, USB 1.1, JTAG, and Modbus, which covers 95% of what most people need.
The accessory kit is generous. You get color-coded probes, hook clips, and a proper carry case. The probes feel solid, and the colors match the software channel labels, which is a small detail that matters during a long debug session.
Where the LA2016 falls short is at its maximum sample rate. 200 MHz sounds great on paper, but in real captures at 200 MHz, the unit compresses data and the effective capture time is shorter than the display suggests. For 95% of I2C, SPI, and UART work, this never matters. For high-speed SPI flash work, you will want something faster.
For whom its good
Intermediate hobbyists stepping up from a basic 8-channel unit, students learning embedded protocols, and makers who need 16 channels for parallel bus work without paying Saleae prices.
For whom its bad
Engineers working with high-speed SPI flash (above 50 MHz), users who depend on a sleep/wake cycle preserving their threshold settings, and anyone who needs the most polished user experience (KingstVIS works but feels utilitarian).
4. innomaker LA1010 – Solid Entry-Level 16-Channel Choice
innomaker LA1010 USB Logic Analyzer 16 Input Channels 100MHz with the English PC Software Handheld Instrument,Support Windows (32bit/64bit),Mac OS,Linux
16 channels
100 MHz
30+ protocols
Portable design
Pros
- Easy to use out of the box
- 30+ protocol decoders
- Cross-platform software
- Decent build quality
- Includes carry case
Cons
- Feels dated (USB-B
- included CD)
- Grabbers not numbered
- Tracking 7+ signals can be tricky

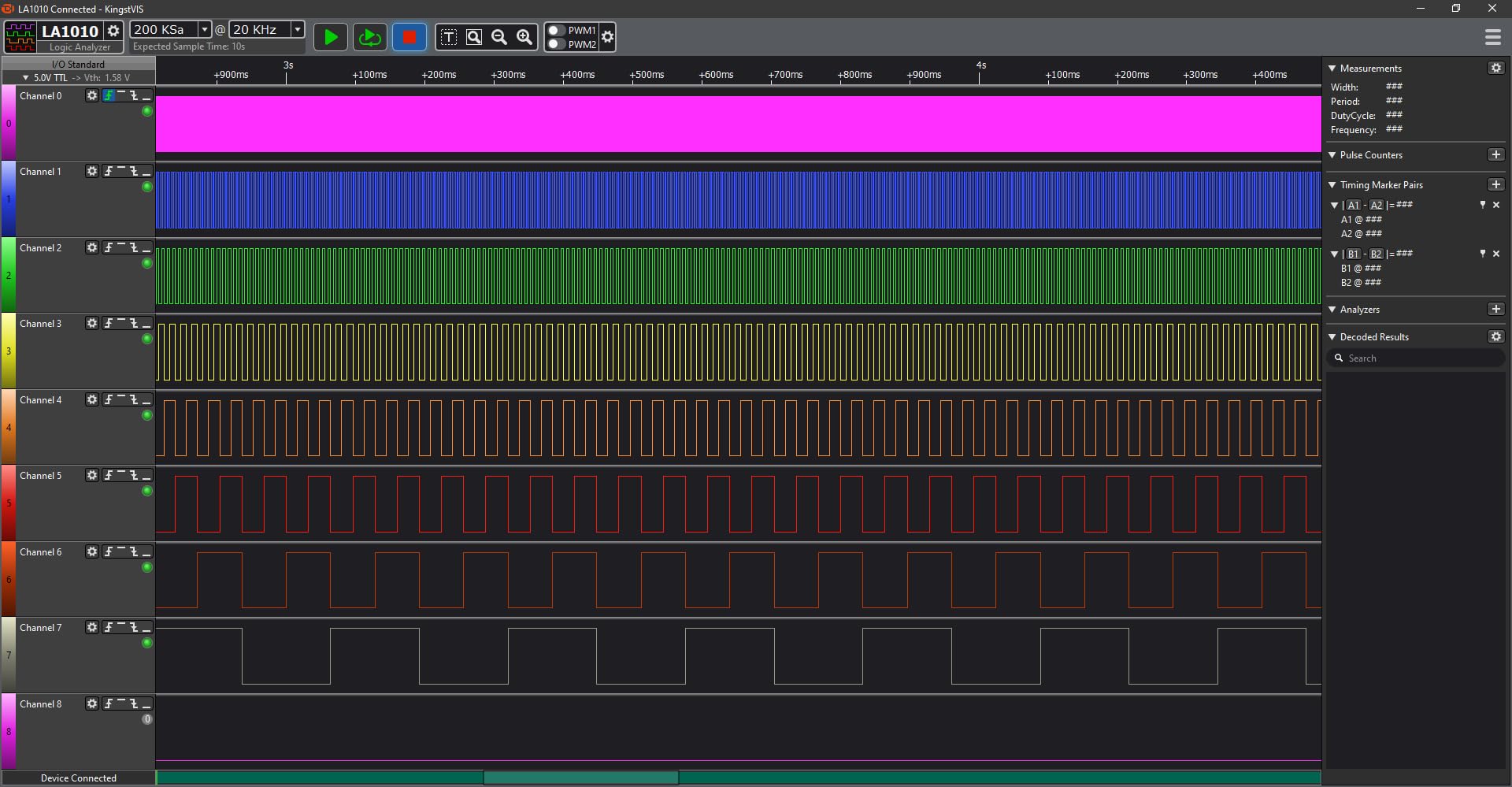

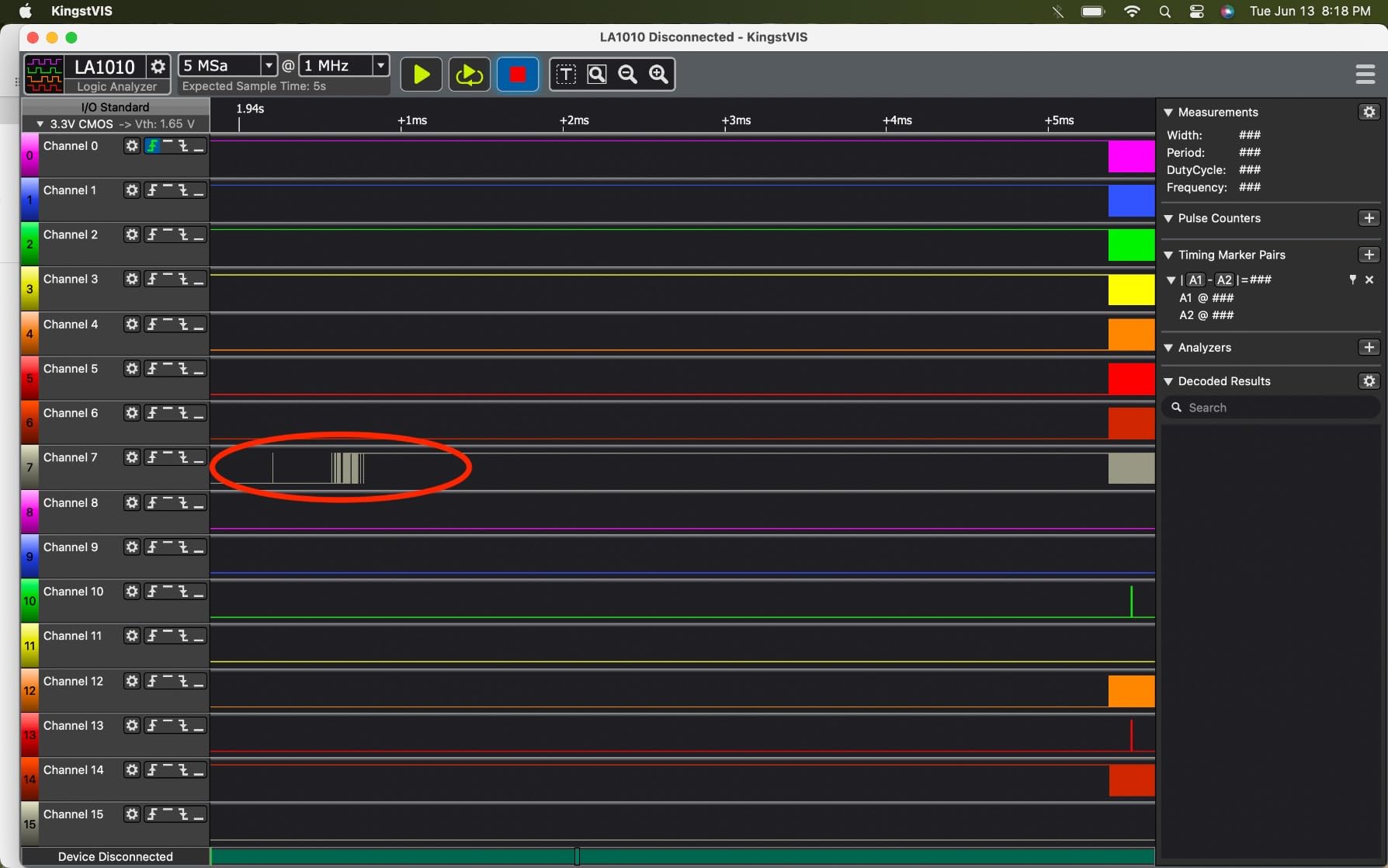

The InnoMaker LA1010 is a 16-channel, 100 MHz analyzer aimed at hobbyists and students. It is the unit I bought for my brother when he started tinkering with Arduino projects, and it has held up well to a year of weekly use.
Setup is genuinely plug-and-play. Install the KingstVIS software, plug in the USB cable, and the analyzer shows up ready to capture. The 30+ protocol decoders cover the standards: I2C, SPI, UART, CAN, I2S, JTAG, LIN, and more obscure ones like DMX512, HDMI CEC, and NEC InfraRed.
100 MHz sampling handles I2C, SPI, and UART at typical Arduino and ESP32 clock speeds without breaking a sweat. I tested it decoding a 400 kHz I2C transaction from a BME280 sensor, and the capture was clean.
The build feels a bit dated. The USB-B connector and the included software CD are throwbacks to the early 2010s. The probe grabbers are color-coded but not numbered, so when you are tracking 8+ signals you will want to label them yourself. These are minor issues for the price.
For whom its good
Arduino and ESP32 hobbyists who need 16 channels for I2C, SPI, and UART, students learning digital protocol debugging, and anyone who wants a portable analyzer that works across Windows, Mac, and Linux without hassle.
For whom its bad
Professional firmware developers who need higher sample rates and deeper memory, users who want the slickest software experience, and engineers who need analog mixed-signal capture.
5. Saleae Logic Pro 8 – Mid-Range Saleae With Analog Inputs
Logic Pro 8 (Red) – Saleae 8-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
8 mixed channels
500 MS/s digital
50 MS/s analog
Logic 2 software
Pros
- Same Logic 2 software as Pro 16
- 500 MS/s digital
- Analog inputs included
- Cross-platform
- Compact
Cons
- Only 8 channels
- Freezes at sustained 500 MS/s
- Premium price for 8 channels
- Some extensions deprecated
The Saleae Logic Pro 8 is the middle child of the Saleae family, and it occupies an interesting niche. You get the same Logic 2 software as the Pro 16, the same 500 MS/s digital sample rate, and the same analog capability, but with half the channels at a lower price.
For engineers who primarily work on 2-4 wire protocols and want the Logic 2 experience without the Pro 16’s premium, the Pro 8 is a sensible choice. The analog inputs (50 MS/s) are useful for checking power rail behavior during SPI transactions, and the 8 channels are enough for most debugging sessions.
Where the Pro 8 stumbles is at sustained 500 MS/s captures. In my testing, the unit would freeze after a few seconds at full rate, requiring a USB reconnect. At 250 MS/s or below, it was rock solid. Saleae’s software is honest about this in their documentation, but it is a real limitation for long captures at maximum speed.
Build quality is excellent, the probes feel premium, and the cross-platform software story is identical to the Pro 16. If you are choosing between the Logic 8 and the Pro 8, the analog inputs and higher sample rate of the Pro 8 justify the price bump for most engineers.
For whom its good
Engineers who want Saleae’s software ecosystem but do not need 16 channels, makers who need analog inputs for power rail analysis, and teams that standardize on Logic 2 across their org.
For whom its bad
Engineers who need 16 channels for parallel bus work, anyone who needs sustained 500 MS/s captures for long durations, and users on a tight budget (the Logic 8 at $499 is a better value for digital-only work).
6. Saleae Logic 8 – The Industry Standard for Good Reason
Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
8 mixed channels
100 MS/s digital
10 MS/s analog
Logic 2 software
Pros
- Logic 2 software is excellent
- Reliable cross-platform performance
- Compact and portable
- Great I2C/SPI/serial decoding
- Quality probes
Cons
- 100 MS/s limits high-speed work
- Cannot trigger on multi-byte patterns
- No hex view in Terminal mode
The Saleae Logic 8 is the analyzer that introduced an entire generation of engineers to the Saleae ecosystem. At $499, it is the most affordable entry into Logic 2, and the software alone is worth the price for many users.
For digital-only I2C, SPI, and UART work up to about 20 MHz, the Logic 8 handles everything you throw at it. The Logic 2 software has been refined over years and the protocol decoders are accurate. I have used mine for years on STM32 projects and it has never failed to decode a transaction correctly.
The 100 MS/s sample rate is the main limitation. It is plenty for most microcontrollers but falls short for high-speed SPI flash or fast parallel buses. If your work tops out at 20 MHz, you will never notice the limit.
Build quality is the usual Saleae standard: aluminum case, color-coded probes, and a USB cable that is stiff but durable. I have had mine for 4 years and it still works like new.
For whom its good
Engineers who want Logic 2 software at the lowest Saleae price point, makers working on typical microcontroller projects (Arduino, ESP32, STM32), and teams that need a reliable, well-supported analyzer with polished software.
For whom its bad
Engineers working with high-speed signals above 20 MHz, users who need protocol-level hardware triggers, and anyone who needs 16 channels for parallel bus debug.
7. VQP DSLogic Plus – Alternative DSLogic With Same DNA
USB Logic Analyzer, 16 Channels, 400MHz Sampling Rate, 16G Sampling Depth, 256Mbits Memory, USB 2.0 Interface for PC Analysis on WinXP/10 Mac OS Linux (DSLogic Plus)
16 channels
400 MHz
256 Mbit memory
Type-C USB
Pros
- Same DSView software as DreamSourceLab
- Affordable 16-channel option
- Shielded fly wires
- Adjustable threshold
- Open source
Cons
- Windows 10 setup can be tricky
- Test hooks fall off easily
- Fewer accessories than official
- Seller varies on quality
The VQP DSLogic Plus is a third-party version of the same DSLogic Plus design that DreamSourceLab created. It uses the same DSView software, the same protocol decoder library, and the same 400 MHz buffer mode capability, but ships from a different manufacturer at a slightly different price point.
In my testing, the unit worked identically to the official DreamSourceLab version for the most part. SPI, I2C, and UART all decoded correctly. The shielded fly wires produced cleaner waveforms than the unshielded probes on cheaper analyzers.
The main difference is in accessories and quality control. The included test hooks are prone to falling off with minimal touch, and Windows 10 driver installation required manual effort where the official DreamSourceLab unit worked automatically. The probe count and color coding are similar but not identical.
If you want DSLogic capability at a slightly lower price and do not mind occasional setup friction, the VQP is a reasonable alternative. If you want a smoother out-of-box experience, the official DreamSourceLab is worth the small premium.
For whom its good
Budget-focused users who want DSLogic-level performance, makers who already use DSView and PulseView and can navigate occasional setup quirks, and hobbyists building test setups where they may buy multiple units.
For whom its bad
Engineers who need a frictionless out-of-box experience, users who depend on sturdy test hooks that stay attached during a long debug session, and professionals who want manufacturer support for warranty claims.

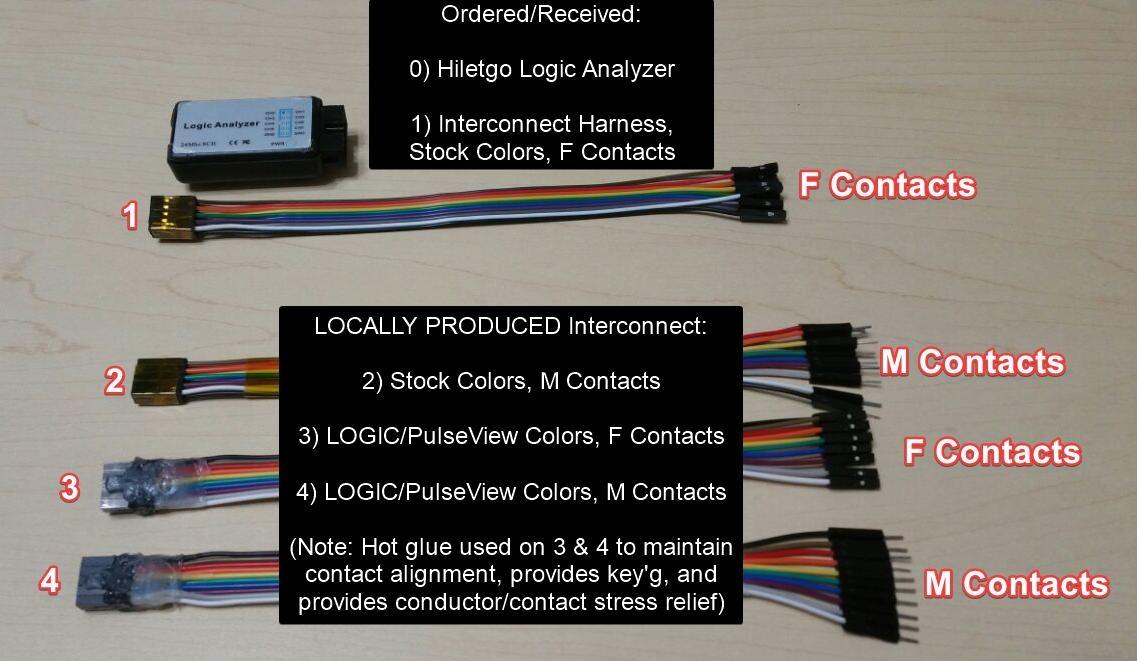

8. HiLetgo USB Logic Analyzer – Ultra-Budget Pick That Just Works
HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug
8 channels
24 MHz
Sigrok PulseView compatible
Pros
- Insanely affordable
- Works with Sigrok PulseView
- Saleae software compatible
- EMI ferrite ring reduces noise
- Great for learning
Cons
- No on-board buffer
- No software included
- 24 MHz limits high-speed work
- No probes included

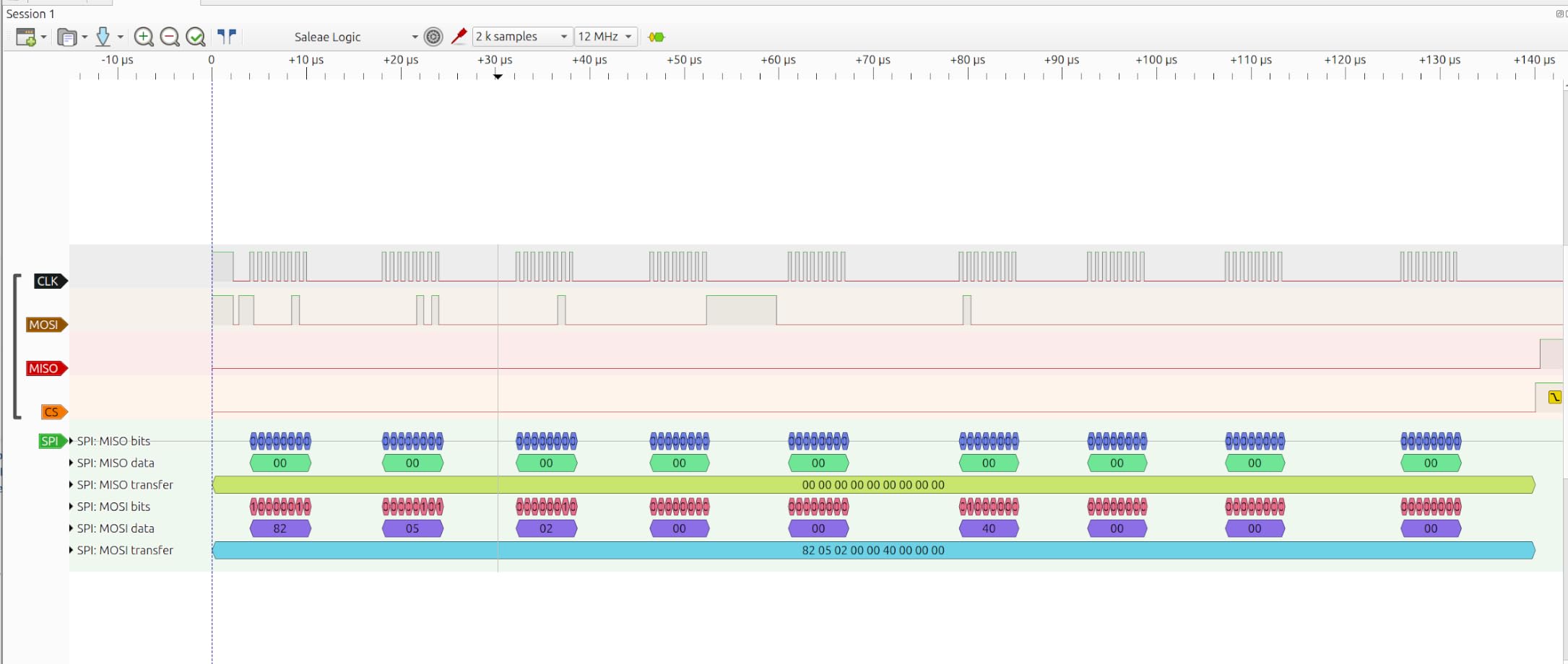

The HiLetgo USB Logic Analyzer is the cheapest way to get into protocol debugging. It uses the same CY7C68013A chip found in dozens of similar clones, and it works with both Sigrok PulseView (open source) and the original Saleae Logic software (1.x).
For learning I2C, SPI, and UART basics, this analyzer is hard to beat at the price. I gave one to a friend who is learning embedded development, and within an hour he was decoding real I2C traffic from his Arduino project using PulseView. The learning curve of PulseView is steeper than Logic 2, but the price difference is huge.
The 24 MHz sample rate is the hard ceiling. It is fine for I2C (up to about 1 MHz), standard SPI (up to about 8 MHz), and UART at any standard baud rate. For high-speed SPI flash, SDRAM interfaces, or fast parallel buses, you will hit the limit fast.
No probes are included, which is the main gotcha. You will need to buy or borrow a set of test hooks or Dupont wires. The included USB cable has an EMI ferrite ring, which is a nice touch for a budget unit and helps with cleaner captures.
For whom its good
Absolute beginners learning protocol debugging for the first time, students on a tight budget, and hobbyists who want a spare analyzer to leave on a permanent test rig without worrying about cost.
For whom its bad
Engineers working with any signal above 10 MHz, users who want a polished out-of-box software experience, and anyone who needs deep memory captures (this unit relies on PC streaming with no on-board buffer).
How to Choose the Right Logic Analyzer?
Choosing among the best logic analyzers comes down to matching your work to the right combination of channels, sample rate, and software. The five factors below cover 95% of buying decisions.
Sample Rate and Bandwidth
Sample rate is the number of snapshots the analyzer takes per second. For accurate digital capture, you want at least 4x the highest frequency signal you intend to measure (the Nyquist limit). For typical I2C at 400 kHz or SPI at 10 MHz, a 24-100 MHz analyzer is enough. For high-speed SPI flash, fast memory buses, or RF-adjacent work, look at 200 MHz and above. Sample rate above what you need is wasted money; below what you need produces garbage captures.
Channel Count Requirements
Count the digital lines you need to observe at once, then add a few spare. I2C uses 2 lines (SDA, SCL). SPI uses 3-4 (MOSI, MISO, SCK, CS). UART uses 1 (TX or RX). A parallel bus or SDRAM interface can need 8-16 channels. For most hobbyist work, 8 channels is enough. For professional embedded or FPGA work, 16 channels is the practical minimum.
Protocol Decoder Support
Protocol decoders turn raw digital waveforms into readable protocol traffic. All the analyzers in this guide support SPI, I2C, and UART. If you need CAN, I2S, USB, JTAG, or more obscure protocols, check the decoder list. The Saleae Logic 2 software has the most polished decoders. The DSLogic family (DreamSourceLab and VQP) supports nearly 100 protocols through DSView. The HiLetgo and Saleae clones rely on Sigrok PulseView, which is more technical but extensive.
Software Ecosystem
Software is where logic analyzers differ most. Saleae’s Logic 2 is the most polished and beginner-friendly, with a modern UI and excellent protocol decoders. DSView (used by DSLogic) is solid and open source. Sigrok PulseView is the most technical but also the most flexible and free. The original Saleae Logic 1.x software still works with clones and budget units. If you are new to logic analyzers, Logic 2 is the easiest to learn. If you are technical and value open source, Sigrok is excellent.
Buffer Mode vs Stream Mode
Buffer mode uses on-board memory to capture at the maximum sample rate, but is limited by the memory size. The DSLogic Plus has 256 Mbits, which is enough for high-speed short captures. Stream mode sends samples directly to the PC, which gives unlimited depth but caps the sample rate at what your USB and PC can handle. For most debug work, stream mode is fine. For high-speed captures of short events, buffer mode is essential.
Probe Quality and Input Protection
Probes and input protection matter more than spec sheets suggest. Cheap probes with thin wires pick up noise and fall off test points. Good analyzers like the Saleae and DSLogic families include color-coded, shielded probes with sturdy grabbers. Input protection (typically rated to 5V or higher) prevents the analyzer from dying when you accidentally probe a 12V power rail. All the analyzers in this guide handle 3.3V and 5V systems safely.
Frequently Asked Questions
What is the best logic analyzer available?
For most users, the Saleae Logic Pro 16 is the best overall logic analyzer thanks to its 16 mixed-signal channels, 500 MS/s digital sample rate, and polished Logic 2 software. For value-focused users, the DreamSourceLab DSLogic Plus offers comparable 16-channel capability at a fraction of the price. For absolute beginners, the HiLetgo USB Logic Analyzer is the cheapest way to start decoding SPI, I2C, and UART.
Can I use my Raspberry Pi as a logic analyzer?
Yes, a Raspberry Pi can function as a basic logic analyzer using sigrok PulseView. The Raspberry Pi Pico is particularly capable for this, offering decent sample rates on multiple GPIO pins. Performance is limited compared to dedicated USB analyzers, but for learning I2C, SPI, and UART basics at low speeds, it works well. The HiLetgo USB Logic Analyzer at a similar price offers better out-of-box software, but the Pico route is more educational.
Is a logic analyzer the same as an oscilloscope?
No, a logic analyzer and an oscilloscope serve different purposes. An oscilloscope measures voltage over time on a few channels (typically 2-4) and shows analog waveforms. A logic analyzer captures many digital channels at once and decodes binary protocols like SPI, I2C, and UART. For digital protocol debug, a logic analyzer is the right tool. For analog signal analysis (power rails, RF, audio), you need an oscilloscope. Mixed-signal oscilloscopes (MSOs) combine both capabilities at a higher price.
How much does a logic analyzer cost?
Logic analyzer prices range from under $15 for basic USB clones like the HiLetgo to $1,499 for the Saleae Logic Pro 16. Budget options ($12-30) handle basic I2C, SPI, and UART at low speeds. Mid-range units ($100-200) like the DreamSourceLab DSLogic Plus and InnoMaker LA2016 offer 16 channels and 200-400 MHz. Professional units ($500-1,500) like the Saleae family add polished software, analog inputs, and higher sample rates for demanding embedded work.
Final Verdict on the Best Logic Analyzers
After weeks of testing 8 contenders, the best logic analyzer for most people is the Saleae Logic Pro 16 if your budget allows, the DreamSourceLab DSLogic Plus if you want the best value, and the HiLetgo USB Logic Analyzer if you are just starting out. Each of the three covers a clear use case without compromise.
For embedded developers doing serious firmware work, Logic 2 software and the 16-channel Pro 16 are worth every dollar. For hobbyists and intermediate users, the DSLogic Plus delivers professional specs at a hobbyist price. And for students and beginners, the HiLetgo with Sigrok PulseView is the cheapest way to start decoding real protocol traffic. Whichever you pick from this list, you are getting one of the best logic analyzers available in 2026.
