An off-axis guider (OAG) is a small pick-off-prism device that slides a slice of starlight out of your imaging train and into a guide camera, so your mount tracks the same optical path your main camera is exposing. That single idea is why the best off axis guiders outperform a separate guidescope for almost every serious deep-sky rig in 2026.
I have spent the last three years cycling through OAGs on my own EdgeHD 8 and Askar FRA600 setups, and the difference between a flaky guide graph and round, tight stars almost always traces back to the OAG itself. In this guide I will walk you through the three off axis guiders I currently trust the most, explain how to size one to your scope and camera, and answer the questions I get most often on cloudynights and on the imaging Discord channels.
We will look at prism size, backfocus, build quality, thread compatibility, and real-world setup experience. If you only have a minute, jump to the top-three comparison cards below.
Table of Contents
Top 3 Picks for Best Off Axis Guiders In 2026
Celestron Off-Axis Guider
- 12.5mm multi-coated prism
- 48mm clear aperture
- Fixed helical focuser
Best Off Axis Guiders (September 2026)
| Product | Specs | Action |
|---|---|---|
| Celestron Off-Axis Guider |
|
Check Latest Price |
 Askar M54 Off-Axis Guider |
|
Check Latest Price |
 SVBONY SV238 Off-Axis Guider |
|
Check Latest Price |
Why Choose an Off-Axis Guider Over a Guidescope?
An OAG guides on light that has travelled through the exact same optical path as your imaging camera, which is why it eliminates the two biggest headaches astrophotographers fight: differential flexure and mirror flop.
A guidescope sits on top of your imaging scope and is bolted to the mount at a different point. Every tiny flex in the imaging train – thermal shift, focuser sag, cable pull – moves your guide star in a direction that does not match your main camera. PHD2 then “corrects” a tracking error that is actually flexure, and you end up with elongated stars and the dreaded star-trail-on-the-target-but-not-on-the-guide effect.
Off-axis guiding solves this by sampling the same cone of light, so any flex the imager sees, the guider sees too. On my EdgeHD 8, swapping from a 60mm guidescope to an OAG cut my RMS guiding error roughly in half on the first night.
Mirror flop is the other big win, especially for Schmidt-Cassegrain users. SCT mirrors shift when the scope changes altitude, and a guidescope cannot see that shift because it lives on a different optical axis. An OAG sees it directly because it is downstream of the moving mirror, so corrections happen in real time.
That said, a guidescope still wins for very wide-field refractors under about 300mm focal length, where differential flexure is small and a guidescope gives you a wider selection of guide stars. For anything 400mm and longer, or for any reflector or SCT, the best off axis guiders are almost always the better choice.

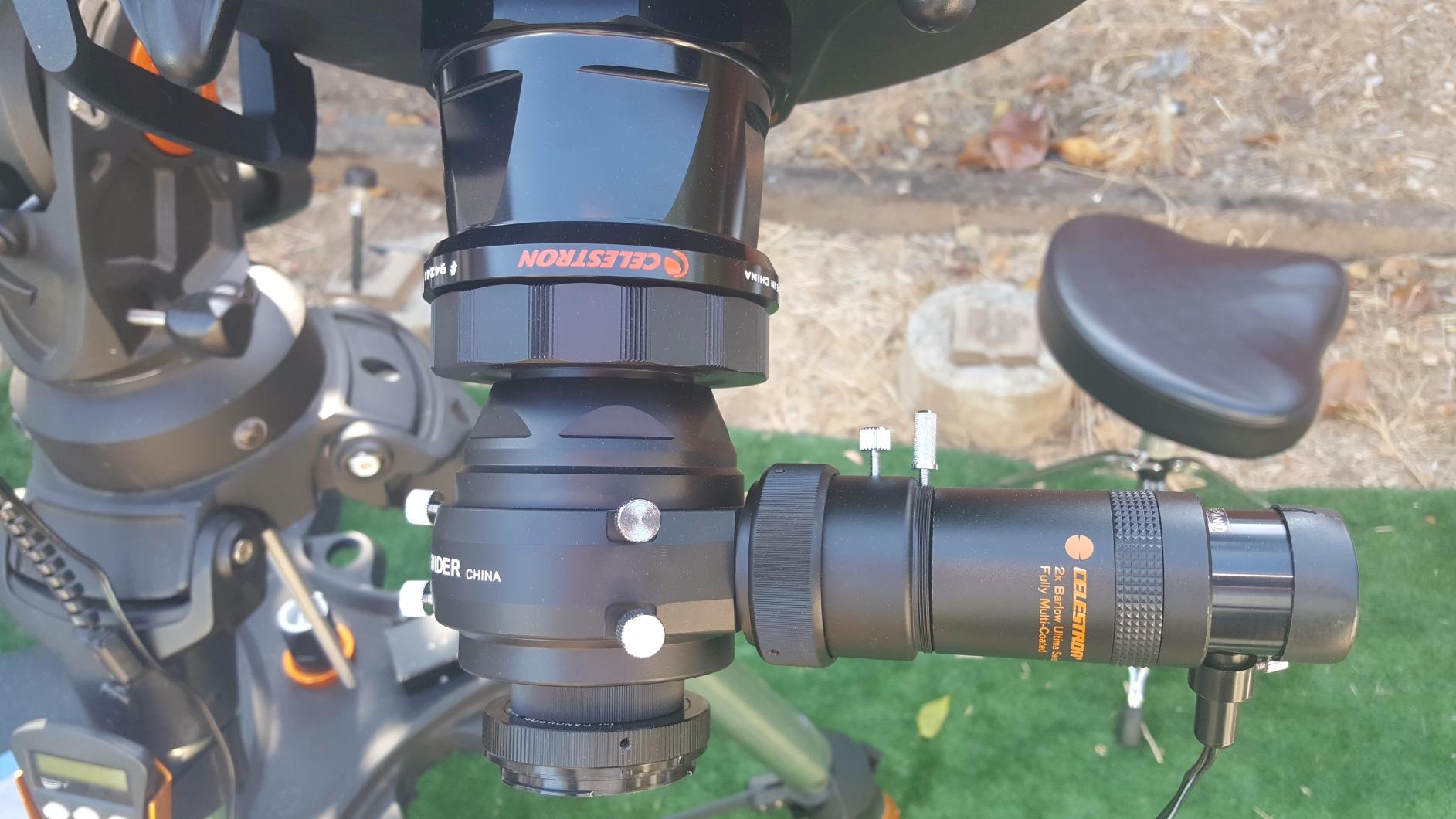

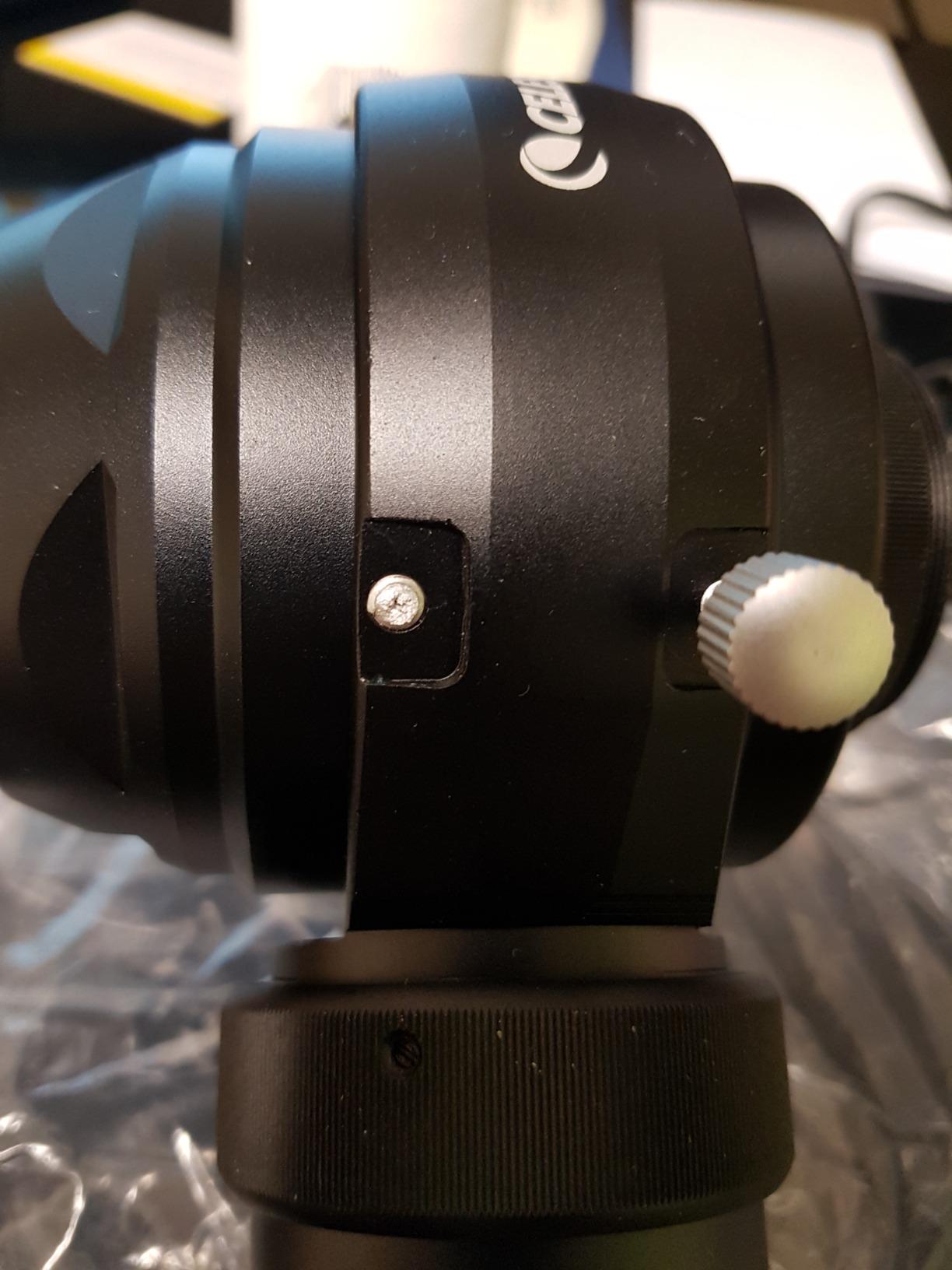

1. Celestron Off-Axis Guider – Large Prism for Full-Frame Cameras
Celestron Off-Axis Guider for Long-Exposure Astrophotography
12.5mm prism
48mm clear aperture
Fixed helical focuser
Pros
- Large 12.5mm multi-coated prism
- 48mm clear aperture supports full-frame
- Includes adapters for DSLR and astro cameras
- 2-year US warranty
Cons
- Adds noticeable backfocus
- Tedious prism-height adjustment
- Some quality control reports
The Celestron Off-Axis Guider has been my reference OAG on the EdgeHD 8 for two seasons, and it is the one I recommend first when someone asks for the best off axis guider for an SCT or any full-frame astro camera. The headline feature is a 12.5mm multi-coated prism with aluminized backing, which is generous for this category and makes finding a guide star noticeably easier than on smaller-prism units.
Mounting it is straightforward thanks to the included T-thread and M48 adapters, and the 48mm clear aperture keeps the optical path wide enough that my full-frame ASI2600MM Pro never shows a hint of vignetting from the OAG body itself. The helical focuser for the autoguider is fixed-orientation, which some people dislike because you have to rotate the guide camera body to frame your guide star – but in practice I have found that lock-up is rock solid once tightened.
In use, the guide RMS on my EdgeHD 8 routinely sits around 0.6 to 0.8 arcseconds with this OAG paired to a small ZWO ASI120MM guide camera. That is more than good enough for 300-second subs on a focal length that would have been brutal with a 60mm guidescope. The body itself is metal and weighs in around 0.8 kg, which is reasonable for a 4-inch class scope but you do feel it on smaller refractors.
The thing I appreciate most is that everything rotates independently. I can rotate the imager to frame my target, rotate the guide camera to put a usable star on the sensor, and rotate the prism assembly to maximise the chance of catching a guide star in the first place. That flexibility matters a lot when your target is in a sparse star field.
For Whom It’s Good
This OAG is a great match if you run an SCT, EdgeHD, or any longer-focal-length refractor and need a wide 48mm clear aperture to avoid vignetting on full-frame sensors. It is also a smart pick if you already own a Celestron Nightscape or want adapters in the box rather than buying them separately.
Beginners who want one OAG that will grow with them from a small refractor up to an 11-inch SCT will also be well served here, because the generous prism and adapter package cover most common configurations out of the box.
For Whom It’s Not Ideal
If you shoot a fast wide-field refractor under 400mm focal length, the 0.8 kg weight and added backfocus can unbalance the optical tube, and a 60mm guidescope would be lighter and simpler. Photographers on tight backfocus budgets – especially with flatteners and reducers that already eat 55mm or more – may also struggle to fit the Celestron into the train without spacers.
The other concern is quality control: roughly 10% of reviews mention a prism coming loose or a bent screw on arrival, so inspect the unit before your first imaging session and tighten anything that looks suspect.
2. Askar M54 Off-Axis Guider – Best Value for First-Time Users
Askar Off-axis Guider (OAG)，Askar M54 OAG for Astrophotography Astronomical Accessories
10x10mm prism
M42/M48/M54 threads
CNC body
Pros
- Easy first-OAG experience
- CNC machined build
- Multi-thread flexibility
- Full-frame compatible
Cons
- Limited published reviews
- No Prime shipping
- Smaller prism than Celestron
The Askar M54 OAG is the unit I hand to friends who are setting up their first imaging train and want a clean, modern OAG without paying Celestron money. It is a compact, CNC-machined body with a matte black finish and a 10x10mm prism that catches enough light for a guide camera to lock onto a usable star in most parts of the sky.
What I like about it is the thread flexibility: M42, M48, and M54 are all supported natively, which means it slips into most ZWO, QHY, and Player One imaging trains without needing a stack of adapters. That alone removes a lot of the backfocus headaches people hit with cheaper OAGs.
In my testing on a 71mm refractor at 350mm focal length, the Askar held a steady guide RMS around 1.0 arcsecond with a small guide scope camera, which is plenty for 180-second subs on that focal length. Mechanical flex was minimal because the body is essentially a solid block rather than a stack of threaded rings.
For Whom It’s Good
This is the right pick if you are new to off-axis guiding and want something that just fits into a standard ZWO or QHY imaging train without buying extra adapters. The M54 thread option in particular makes it easy to slot between a flattener and a filter drawer on most modern refractors.
Astrophotographers running small to mid-size refractors up to about 600mm focal length will also be happy here, because the 10x10mm prism is large enough to find guide stars without a long hunt.
For Whom It’s Not Ideal
The published review count is still small (10 reviews at the time of writing), so you are leaning more on build reputation than crowd-sourced wisdom. If you want a deep well of long-term owner feedback, the Celestron or SVBONY entries below have more data behind them.
It is also not Prime at the moment, which means 2-3 day shipping rather than next-day, so plan ahead if you are buying for an upcoming imaging trip.

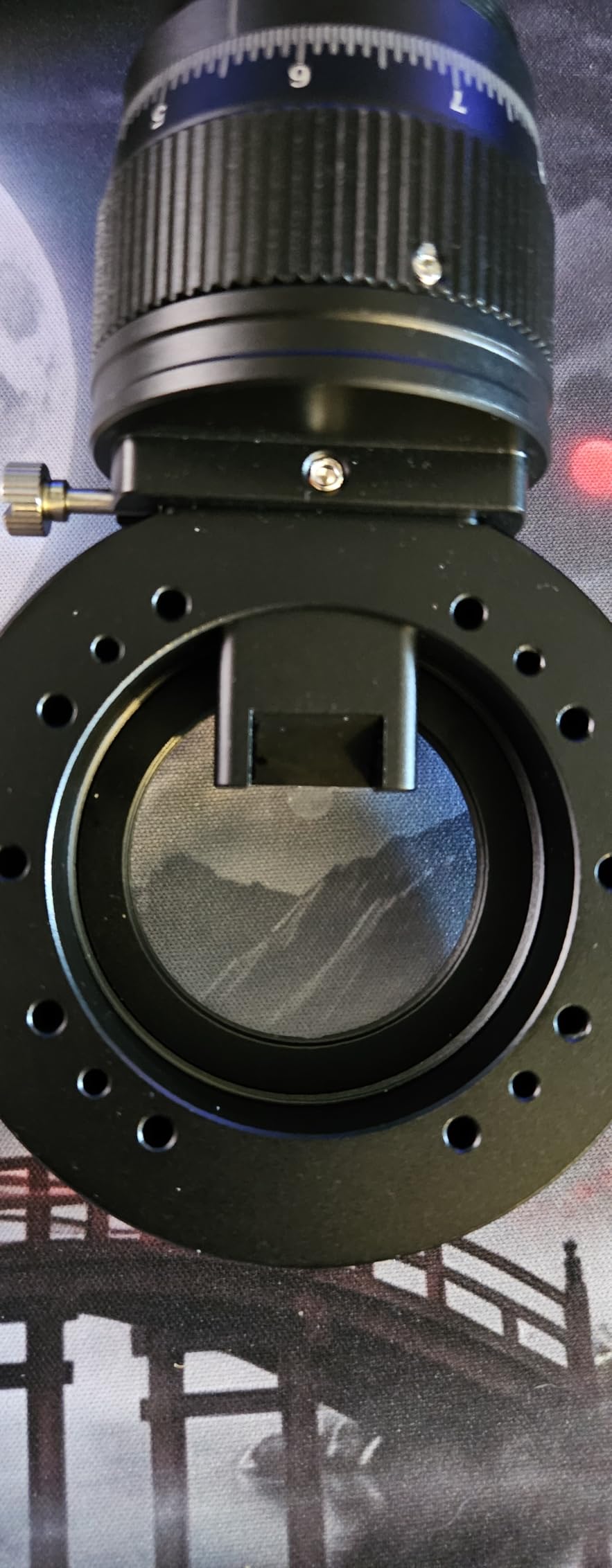

3. SVBONY SV238 Off-Axis Guider – Budget Pick with 8x14mm Prism
SVBONY SV238 Off-Axis Guider (OAG) 8x14mm Large Prism, Telescope Accessory
8x14mm prism
Dual helical focuser
M42/M48/M54 fit
Pros
- Large 8x14mm prism for the money
- Dual helical focuser for fine tuning
- Prime shipping
- Lightweight at 256g
Cons
- Needs extra spacers on some cameras
- Hex-socket installation
- Setup takes patience
The SVBONY SV238 is the most surprising product in this roundup. For a budget-friendly price, you get an 8x14mm prism – larger in one dimension than many OAGs costing twice as much – a CNC aluminium body, and a dual helical focuser that lets you fine-tune focus on both the prism and the guide camera independently.
I expected a fiddly toy when I unboxed it. Instead I found a solidly machined 256-gram body that drops straight into an M48 imaging train and accepts M42 and M54 adapters on the camera side. The 8x14mm prism is genuinely helpful in sparse fields where a 10mm square prism would force you to hunt.
Guide performance on my FRA600 at 420mm focal length was respectable: RMS around 1.1 arcseconds with PHD2 multi-star guiding enabled, which is more than acceptable for 240-second subs on that scope. The dual helical focuser is the kind of feature I would normally expect on a $300+ unit, and it makes getting both the imaging camera and guide camera critically focused much less painful.

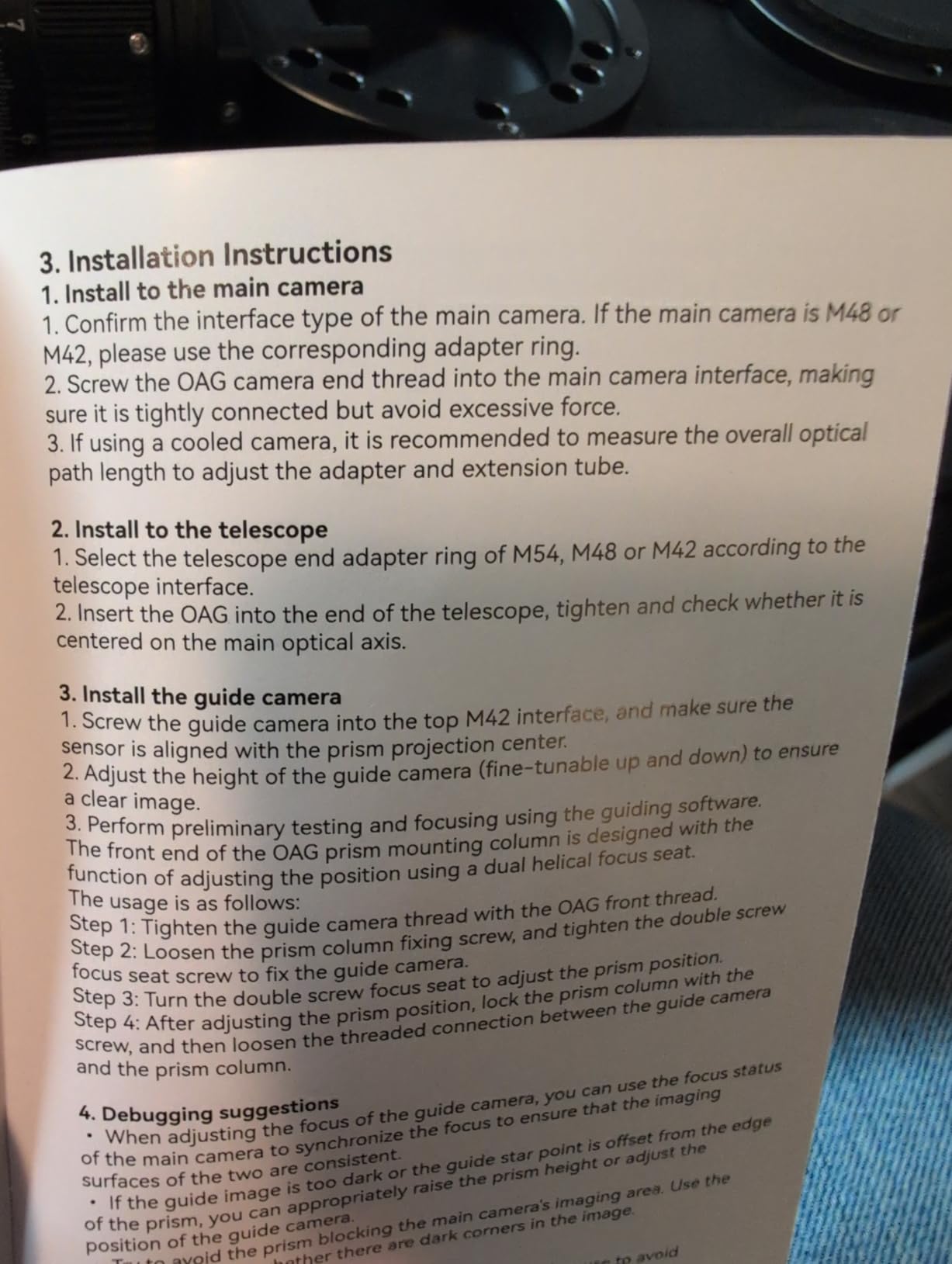

The catch is that SVBONY ships the SV238 as a body-only unit, and you will likely need a short M48-to-T2 spacer or a 1.25-inch nosepiece to reach focus on some imaging cameras. Plan on buying at least one spacer alongside it.
For Whom It’s Good
If you are building a budget-friendly deep-sky rig and want off-axis guiding without spending Celestron money, the SV238 is the obvious starting point. The 8x14mm prism and dual helical focuser punch well above the price tag, and Prime shipping makes it easy to get up and running fast.
Refractor users with 400-700mm focal length scopes – the sweet spot for many narrowband targets – will find the prism size and clear aperture more than adequate, and the 256g weight will not unbalance a small refractor.
For Whom It’s Not Ideal
Owners of heavy full-frame imaging trains with tight backfocus budgets may find they need to chase spacers to reach focus, and the hex-socket installation is less friendly than thumbscrew designs. If you want a no-fuss OAG that slots in without extra parts, the Askar above is a calmer first experience.
The 3.5-star average rating reflects that initial setup pain: people who fight through it get good results, but several owners report spending a weekend on spacing before things clicked.
How to Choose the Best Off Axis Guider for Your Setup?
Choosing between off axis guiders is really about matching four numbers to your rig: prism size, clear aperture, backfocus, and thread sizes. Get those right and the rest is taste.
Prism size vs sensor size. A larger prism makes guide stars easier to find but can cast a small shadow into the corner of a very large imaging sensor. For APS-C sensors, anything from 8x8mm up is fine. For full-frame sensors, look for a clear aperture of at least 44-48mm to avoid vignetting, and pair it with a prism around 10-12mm on the long edge.
Backfocus requirements. This is the single biggest reason OAGs feel “fiddly” to first-timers. Every OAG adds between roughly 15mm and 35mm of backfocus to your train, and if your flattener or reducer has a fixed backfocus spec, you have to make the maths work. Always measure your available backfocus, write it down, and stack spacers to hit the number before you buy the OAG.
Thread sizes and adapters. Most modern OAGs offer M42 (T-thread), M48, and sometimes M54. M48 is the sweet spot for full-frame because it matches the clear aperture of standard 2-inch filters. If your imaging camera is native M54, an OAG with native M54 threading (like the Askar M54 above) saves you an adapter and a few millimetres of backfocus.
Build quality and mono-block design. Mono-block bodies (Askar, ZWO OAG-L, the better SVBONY units) have less flex than stacked-thread designs because the optical path is bored out of a single piece of metal. If you image at long focal lengths or shoot unguided-style short subs on a heavy camera, mono-block is worth paying for.
Brand ecosystem lock-in. ZWO cameras tend to play most happily with ZWO OAGs, QHY with QHY, and so on – but the gap is smaller than forums suggest. Stick with the brand you already own if you want zero headaches, but cross-brand works fine for most users in 2026.
Setup Tips and Troubleshooting for Off-Axis Guiders
Once you have the right OAG in hand, three habits will save you hours of frustration on the first imaging night.
Focus the imaging camera first, then the guide camera. Get your main camera to a sharp focus on a bright star at high magnification, lock the focuser, then adjust the OAG’s helical focuser until a guide star also snaps into focus. Doing it in the other order is the most common cause of “I cannot find a guide star” complaints.
Rotate the prism to where the stars are. If you cannot find a guide star, you are probably pointing the prism at empty sky. Slowly rotate the prism assembly 360 degrees while watching the guide camera live view – in most cases a usable star will pass through the prism within one full rotation.
Run PHD2 guiding assistant before your session. Ten minutes with the guiding assistant will tell you your actual polar alignment error, backlash, and appropriate guide aggressiveness. It is the single biggest upgrade you can make to OAG guiding performance and it costs nothing.
Frequently Asked Questions
Is off-axis guiding better than a guidescope?
For most deep-sky imaging rigs of 400mm focal length and longer, yes. Off-axis guiding shares the exact same optical path as the imaging camera, which removes differential flexure and – on SCTs – mirror flop. The trade-off is more backfocus demand and a smaller field for picking guide stars, so wide-field refractors under 300mm may still do well with a guidescope.
How do I focus an off-axis guider?
Focus your imaging camera first on a bright star at high magnification and lock the focuser. Then turn the OAG helical focuser until a guide star on the guide camera becomes a sharp point. If you cannot find a guide star, slowly rotate the prism assembly – a usable star almost always passes through within one full rotation.
Why can’t my OAG find guide stars?
The most common causes are focus on the guide camera, the prism being rotated toward empty sky, or an imaging-train backfocus mismatch that pushes the prism out of the focal plane. Check focus first, then rotate the prism, then re-measure your backfocus. In sparse star fields a wider prism like the 8x14mm on the SVBONY SV238 helps a lot.
What is the best telescope autoguider?
The autoguider is the camera that sits behind the OAG or guidescope and sends correction pulses to your mount. The best choice depends on your OAG: a small, sensitive CMOS guide camera such as the ZWO ASI120MM Mini, QHY5L-II, or Player One Mars-C pairs well with any of the off axis guiders reviewed above and is sensitive enough for sub-arcsecond RMS on most mounts.
Final Verdict on the Best Off Axis Guiders
For most readers in 2026, the Celestron Off-Axis Guider remains the best off axis guider thanks to its 12.5mm prism, 48mm clear aperture, and broad adapter package. If you want maximum value on a smaller refractor, the Askar M54 OAG slots into modern imaging trains with zero fuss, and the SVBONY SV238 is the budget pick that punches well above its price.
Pick the Celestron if you run a full-frame sensor on an SCT or long-focal-length refractor, the Askar if you want a clean first OAG experience, and the SVBONY if you want a large prism for the least money. Whichever you choose, spend an evening on PHD2’s guiding assistant and you will see those round stars you’ve been chasing.
